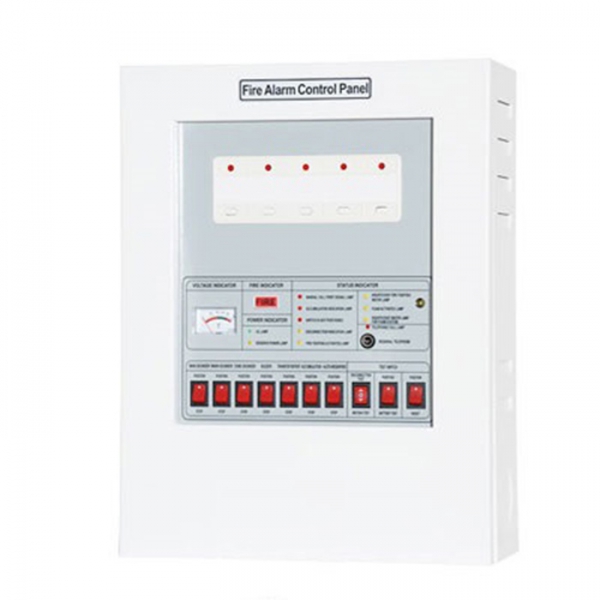

Trung tâm báo cháy 5 zone CM-P1-5L

Thông tin chi tiết:

–  Model: CM-P1

–  Nguồn: AC 230V 50/60Hz

–  Stand-by Battery: DC 24V

–  Charging Voltage & Current: DC 26V below 450mA, fixed voltage trickle charging

–  Circuit Voltage & Current: DC 24V operation voltage 5V, below 32mA

–  External Circuit Resistance: To-and-fro below 50 Ω

–  Detectors: Rate of rise/fixed temperature heat detector and smoke detector. Below 30 units per circuit for smoke detector (DC 24V 45μA).

–  Điện trở cuối dòng: 10KΩ

–  Number of Indicators: 1.2 times of panel circuits (LED indicator)

–  Number of Bells: 1.2 times of panel circuits

–  Case Material: 1.2 mm – 2.0mm Steel plate with powder coating

–  Main Audio: Single-tone buzzer, above 85dB

–  Facitity Contact: No voltage NO contact, capacity AC 150V 7A * 2set
